Home>FLIR Neutrino Series>Teledyne FLIR Neutrino SX8, f/3, with Shutter MWIR Camera Module 1280 × 1024

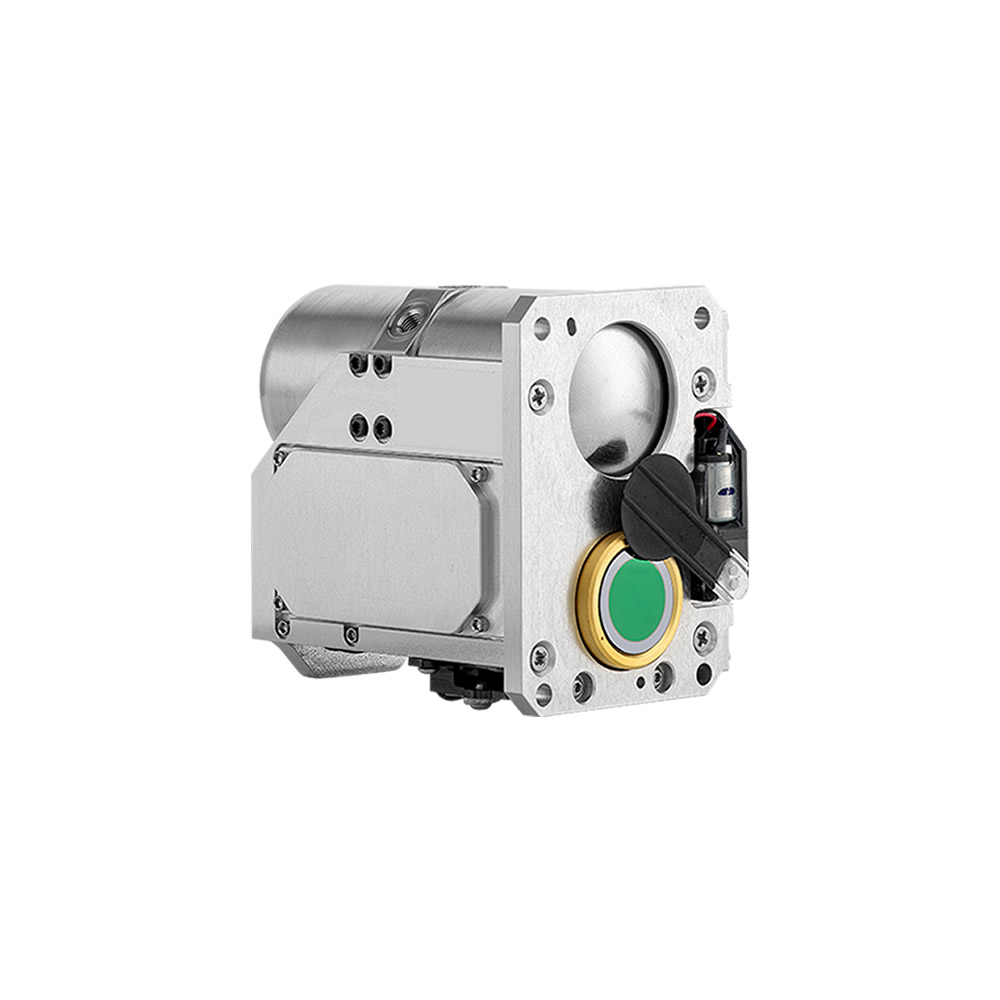

Teledyne FLIR Neutrino SX8, f/3, with Shutter MWIR Camera Module 1280 × 1024
Teledyne FLIR Neutrino SX8, f/3, with Shutter MWIR Camera Module 1280 × 1024 - Image 2
Teledyne FLIR Neutrino SX8, f/3, with Shutter MWIR Camera Module 1280 × 1024 - Image 3

Teledyne FLIR Neutrino SX8, f/3, with Shutter MWIR Camera Module 1280 × 1024

  • Resolution – 1280 x 1024
  • Pixel Pitch – 8 µm
  • Spectral Band – 3.4 to ≥ 5.1 µm Standard
  • Sensitivity/NEdT – <38mK
  • FPA & Digital Video Display Formats – 1280 x 1024
  • Detector Type – HOT MWIR
  • f-number – f/3.0
  • Frame Rate – 1-60 Hz, configurable
  • Image Correction – DDE, Histogram Equalization, Linear
  • Color and Monochrome Palettes (LUTs) – Yes, RGB888 mode
  • Continuous Digital Zoom – Yes, up to 8x
  • EFL_Zoom Range [mm] – Lens Sold Separately
  • Operating Temperature Range – -40°C to +71°C (-40°F to +160°F)
  • Non-Operating Temperature – -57 °C to +80 °C (-70.6 °F to +176 °F)
  • Operational Altitude – 12 km
  • Programmable Integration Time – Yes (0.01 ms – 16.6 ms)
  • ROIC – ISC1601
  • ROIC Modes – Free run, readout & integration priority
  • CMOS (16-bit or 8-bit) – Yes
  • Weight – <420 g
Залишити заявку

Teledyne FLIR Neutrino SX8, f/3, with Shutter MWIR Camera Module 1280 × 1024

Висока якість зображення

Широкий кут огляду

Надійний дизайн

Boson+ vs Boson

Specs

Resolution

Field of View (HFOV)

Detector type

Frame rate

Lens options

Thermal Sensitivity

Size

Power Consumption

Bosson+

640x512 pixels

5.5°

12µm VOx (Vanadium Oxide)

60Hz

Multiple options (19mm, 35mm)

< 30mK

More compact design

Lower power consumption

Bosson

320x240 pixels

9°

17µm VOx (Vanadium Oxide)

30Hz

Limited options (typ. 19mm)

< 50mK

Larger form factor

Higher power consumption
