Imaging & Optical
|
|
|
Sensor Core
|
|
|
Resolution
|
320 × 256 |
|
Pixel Pitch
|
12 µm |
|
Spectral Band
|
LWIR | 8 µm – 14 µm |
|
Noise Level (NEDT Value)
|
Grade – Consumer <60mK NEDT Grade – Professional <50mK NEDT Grade – Industrial <40mK NEDT |
|
Temporal
|
|
|
Frame Rate Option
|
60Hz default; 30 Hz runtime selectable |
|
Optics
|
|
|
Field of View
|

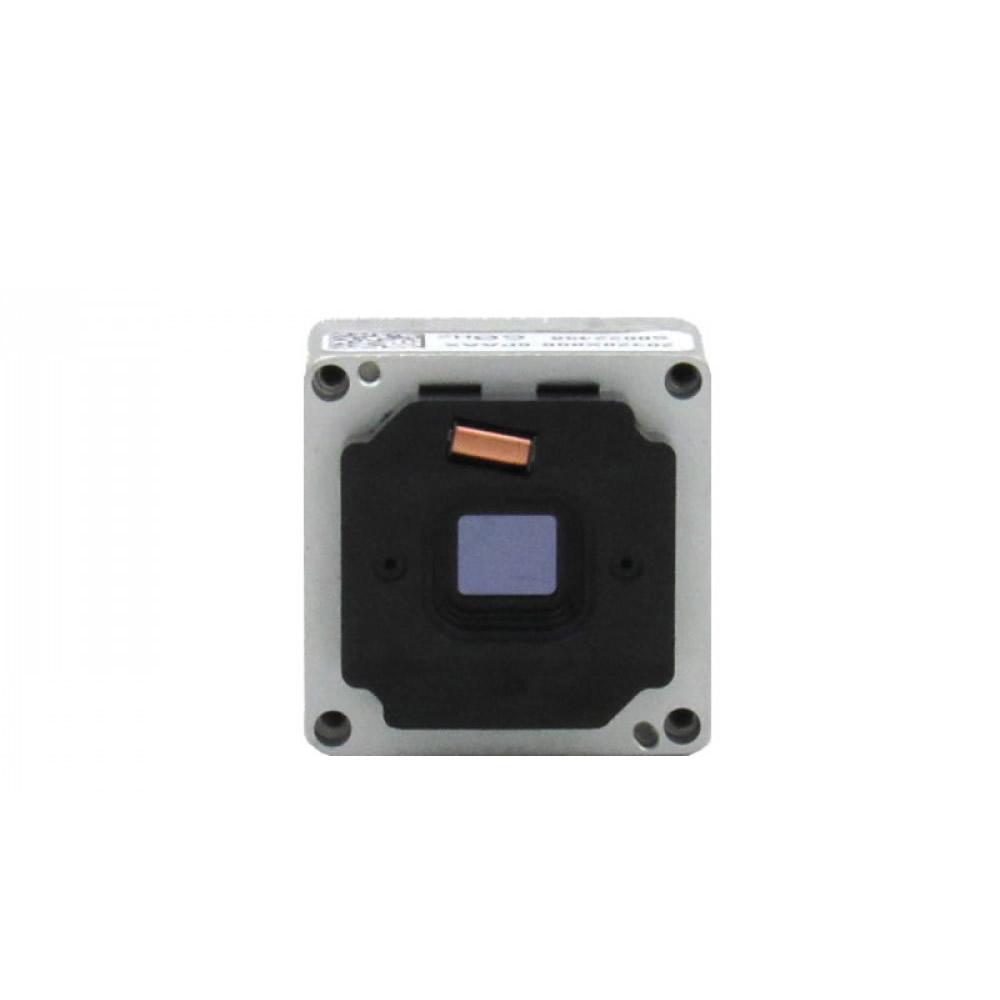

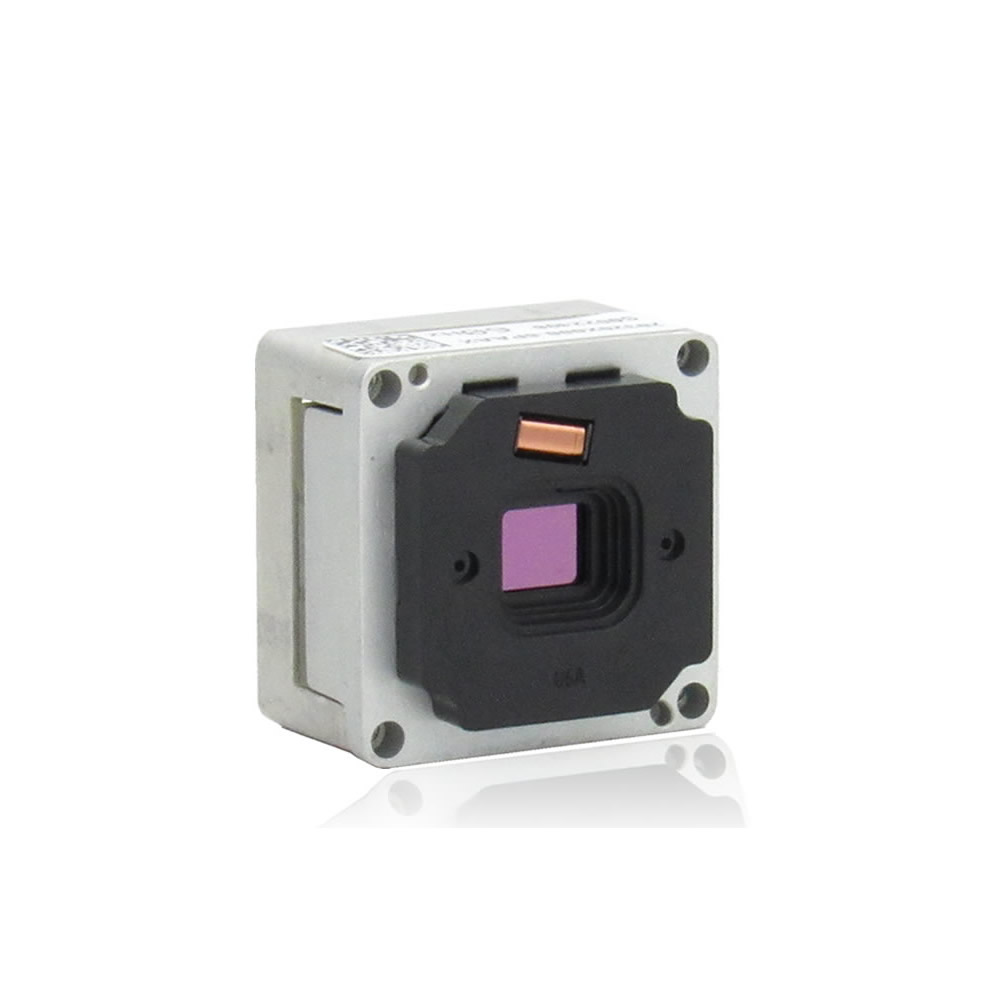

Lensless |
|
IFOV (mrad)
|
|
|
Focal Length
|
Lensless |
|
f-number
|
f/1.0 |
|
Short Lens
|
No |
|
Image features
|
|
|
Scene Dynamic Range
|
to 140 °C (high gain), to 500 °C (low gain) |
|
Continuous Digital Zoom
|
1X to 8X zoom |
|
Symbology
|
Re-writable each frame; alpha blending for translucent overlay |
|
Calibration/protection
|
|
|
Non-Uniformity Correction (NUC)
|
|
|
Shutter
|
Yes |
|
Solar protection
|
Integral |
|
Radiometry
|
|
|
Radiometry
|
No |
|
Temperature Accuracy
|
N/A |
|
Connections & Communications
|
|
|
Video Channels
|
CMOS or USB2 |
|
Control Channels
|
UART or USB |
|
Configurable GPIO
|
Up to 11; user configurable |
|
Electrical
|
|
|
Input Voltage
|
3.3 VDC |
|
Power Consumption
|
|
|
Power Dissipation
|
Varies by configuration. 320+ as low as 500 mW, 640+ as low as 1000 mW |
|
Mechanical
|
|
|
Dimensions (L x W x H)
|
21 × 21 × 11 mm without lens |
|
Weight
|
7.5 g without lens (configuration dependent) |
|
Precision Mounting Holes
|
Four tapped M1.6×0.35 (rear cover). Lens support recommended when lens mass exceeds core mass |
|
Boson Enclosure Compatible
|
No |
|
Environmental & Approvals
|
|
|
Operating Temperature Range
|
-40°C to 80°C |
|
Non-Op. Temp. Range
|
-50 °C to 85 °C (-58 °F to 185 °F) |
|
Operational Altitude
|
12 km (max altitude of a commercial airliner or airborne platform) |
|
Shock
|
1, 500 g @ 0.4 msec |
